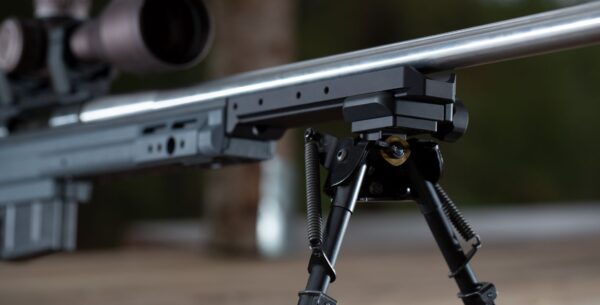

KRG Arca Spigot Mount XL

Maximum forward extension. Maximum stability. Maximum modularity.

The KRG Arca Spigot Mount XL takes everything shooters love about the standard ARCA Spigot and pushes it even further forward — literally. With an added 3.8" of forward throw (7.75" total extension), the XL version moves your bipod farther toward the muzzle and closer to the bore for improved recoil control, flatter tracking, and enhanced positional stability.

Built for the Whiskey-3, X-Ray, and Bravo chassis systems, the Arca Spigot XL combines a rigid integrated ARCA rail with modular mounting options for bipods, sling points, QD attachments, and night vision accessories — all while maintaining minimal barrel channel interference for larger contours.

🔹 Why Run the XL?

• Moves bipod approximately 1" closer to bore centerline
• Extends bipod position 4–7" farther forward compared to the factory forend
• Improves recoil tracking and positional stability
• Creates additional room for tripod/barricade transitions

This is the setup serious PRS and NRL shooters gravitate toward when they want maximum front-end control.

🔸 Integrated Mounting Options

• Built-in ARCA rail for fast modular accessory positioning
• 4 mounting positions for the offset QD plate
• Flush QD mounting position underneath with no ARCA clamp interference
• 2 positions for the dedicated Spigot NV Cap
• Mounting positions for:
  • KRG Wide Direct Harris Mount
  • KRG Inline Harris Mount (Prevents Harris bipod rotation)

🔹 Key Features

• Bolt-on installation into front chassis slot
• Minimal barrel-channel interference for larger barrel diameters
• Compatible with NV bridge setups
• Lightweight but rigid extended chassis interface
• Includes hardware pack for multiple mounting configurations

⚙️ Compatibility

✔ Fits:

• KRG Whiskey-3 (Gen 3 and newer)
• KRG X-Ray
• KRG Bravo

⚠️ Restrictions:

• No provisions for accessories on the 3 or 9 o’clock positions on current version
• Does not fit Sako TRG chassis without modification/creative fitting

🔧 Materials & Specs

• Material: 6061 Aluminum
• Finish: Mil-Spec Hard Anodize
• Weight: 11 oz
• Extension: 7.75" total forward throw
• Installation: Metric hex wrenches required
  • Forend removal required
  • Barreled action may or may not require removal

⚠️ ITAR Notice

This item is restricted for export outside the United States under ITAR regulations.

💬 Why We Recommend It

The farther forward you can place your bipod without sacrificing rigidity, the more stable your rifle becomes under recoil and positional pressure. The XL gives you exactly that — more leverage, more control, and more usable ARCA real estate.
